ALE M3 DeskPhone

Basic Info.

Model NO.	M3
Customized	Non-Customized
Color	Black
Warranty	1 Year
Transport Package	Carton Packing
Specification	Customized
Trademark	ALE
Origin	Guangdong, China
Production Capacity	5000PCS/Month

Product Description

Al catel Lucent M3 Overview

The M3 DeskPhone from Alcatel-Lucent Enterprise offers a rich SIP communications experience with intuitive navigation and conversation comfort.
The user experience is enhanced with a 4-way navigation key, 6 line keys, 4 soft keys and a userfriendly interface.
The M3 DeskPhone includes USB A/C ports making it more than a phone. It is possible to connect to a PC as an external loud speaker to take advantage of the super wide band speaker phone or plug external devices such as Expansion Module (EM20 or EM200), headset, conference module etc. The M3 DeskPhone supports a Wi-Fi dongle.
This compact DeskPhone provides super wideband audio in hands free mode with echo canceling and double talk performance.
The M3 DeskPhone includes an adjustable foot stand.
The standard SIP protocol provides the rich telephony features supported by the major open SIP servers in the market.
The M3 DeskPhone can operate in Power over Ethernet (PoE) mode (Class 2).

Quick Specs

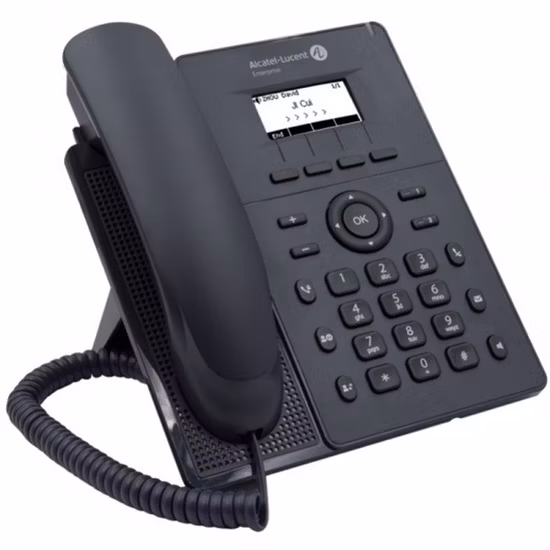

Figure 1 shows the appearance of the M3.

Table 1 shows the Quick Spec.

Product Code	M3
Physical Characteristics	• Height: 183mm (7.2 inches) • Width: 207mm (8.2 inches) • Depth: 35mm (1.4 inches) • Weight: 806g (1.78lb) incl. handset and foot stand • Color: Gray • Adjustable foot stand: 40° and 55° • Wall mountable
Keys	• 6 line keys with LED • 4 menu keys • Volume control keys (+ and -) • Navigator: 4 way navigation + OK • Hands-free, mute and message keys • Call hold, call transfer and redial key • Dial pad
Telephony features	• 4 SIP accounts • Incoming/outgoing/rejected • Call forwarding • Call waiting • Call hold/resume • Redial • Speed dial • Mute/unmute • Do not disturb (DND) • Auto answer • Voicemail • Local 5-party conference • Call Log (1000 entries) • Contacts (1000 entries)
Power	• Power over Ethernet (IEEE 802.3af), Class 2 • Power adapter: 5V/2A DC output (optional)
Connectivity	• RJ-45 LAN: 10/100/1000M Ethernet • RJ-45 PC through 10/100/1000M Ethernet switch • RJ-9 handset connector • USB Type-A connector
Configuration	• Web-based management, phone configuration, and automated configuration • ALE Easy Provisioning Server (EPS) • ALE Easy Deployment Server (EDS)
Languages	• Multi-language support (menu): • Arabic, Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English (American), English (British), Estonian, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish
Safety	• EN 60950-1: 2006 +A11: 2009 +A1: 2010 +AC: 2011+A12: 2011 +A2:2013 • IEC 60950-1: 2005 +A1: 2009 +A2: 2013 • EN 62368-1: 2014 +A11: 2017 • CAN/CSA-C22.2 NO. 60950-1-07 +Am1: 2011 • +Am2: 2014, ANSI/UL 60950-1-2014
EMC	• EN 55032, CISPR 32 • EN 55024, CISPR 24 • EN 61000-3-2, EN 61000-3-3
Packaging	• M3 DeskPhone • Wired wideband headset • Foot stand • 1.5m Ethernet cable (cat5e) • Safety sheet • Quick user guide
